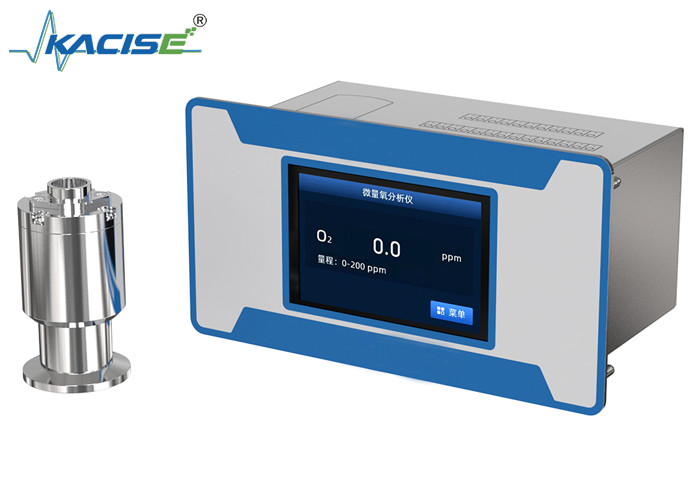

KGD - MQ - 538 Precision Trace Oxygen Analyzer

Brand Name : KACISE

Model Number : KGD-MQ-538

Certification : CE

Place of Origin : CHINA

MOQ : 1PCS

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Piece/Pieces per Week negotiable

Delivery Time : 5-8 work days

Packaging Details : each unit has individual box and all boxes are packed in standard packages or customers requests available

Measurement Principle : Limiting current - type zirconia method

Measuring Range : 0 - 100ppm; 0 - 1000ppm; Automatic switching

Measurement Accuracy : ≤ ±2%F.S.

Resolution : 0.1ppm

Operating Temperature : 0 - 50°C

Response Time : T90≤10s

Contact Now

KGD - MQ - 538 Trace Oxygen Analyzer

Product Introduction

The KGD - MQ - 538 Trace Oxygen Analyzer is based on limiting current - type zirconia sensor technology. It enables the measurement of oxygen concentration at the ppm level in industrial processes, featuring high measurement accuracy, fast response speed, and good stability. It can be applied in fields such as semiconductor manufacturing, air separation, and inert gas welding, providing reliable performance for key process control applications. The product adopts a compact modular design, which is small in size and easy to install in complex working conditions. It is also equipped with an intuitive and rich user interface, offering an excellent human - machine interaction experience.

KGD - MQ - 538 Precision Trace Oxygen Analyzer

Product Features

  • High measurement accuracy, capable of ppm - level measurement.
  • Fast response speed, providing results in seconds.
  • Good product stability, no need for regular calibration.
  • Compact modular design, small size, and easy installation.
  • Strong human - machine interaction, with rich and intuitive display content and convenient operation.
  • Strong anti - interference ability, low cross - sensitivity to other gases.
  • Alarm function: An alarm will be issued when the oxygen concentration deviates from the alarm value, and the alarm value is adjustable.

Technical Parameters

Parameter Details
Measurement Principle Limiting current - type zirconia method
Measuring Range 0 - 100ppm; 0 - 1000ppm; Automatic switching
Measurement Accuracy ≤ ±2%F.S.
Resolution 0.1ppm
Response Time T90≤10s
Operating Temperature 0 - 50°C
Relative Humidity 0 - 95%RH
Analog Current Output 4 - 20mA
Analog Voltage Output 0 - 5 V DC, 0 - 10 V DC
Alarm Output 2 - way alarm, 1 - way fault alarm
Communication Interface RS - 232, RS - 485
Power Supply 12V DC/20V AC, 50Hz
Product Dimensions (mm) Meter (L*W*H):178*107*95；; Sensor (DL): 38.1*71.5
