Operating Environment-Friendly KGD WQ 501 Engine Emission Testing System for Accurate Results

Brand Name : KACISE

Model Number : KGD-WQ-501

Certification : CE

Place of Origin : CHINA

MOQ : 1PCS

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Piece/Pieces per Week negotiable

Delivery Time : 5-8 work days

Packaging Details : each unit has individual box and all boxes are packed in standard packages or customers requests available

Response Time : T10 - 90 < 2.5s

Accuracy : ≤ ±2.0%WR or ≤ ±0.3%FS

Linearity : Determination coefficient: ≥ 0.998; Standard error: ≤ 1%FS; Slope: 0.99 - 1.01; Intercept coefficient: ≤ 0.5%FS

Repeatability : ≤ ±0.5%FS

Drift : ≤ ±1%FS/8h

Operating Environment : Ambient temperature: 5 - 40°C; Ambient humidity: ≤ 80%RH

Contact Now

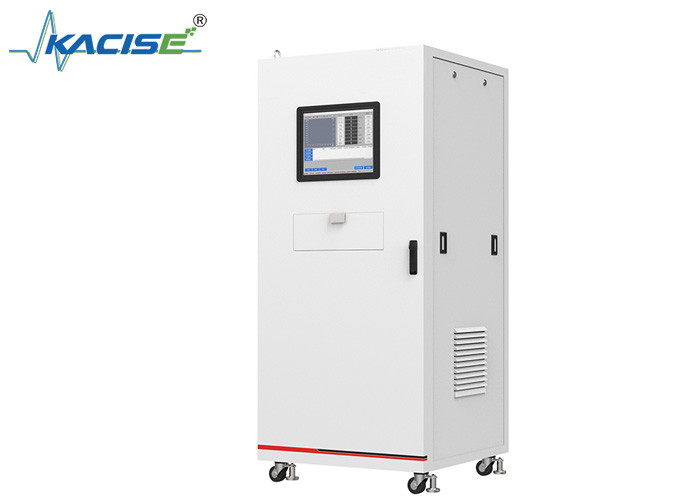

KGD - WQ - 501 Engine Emission Testing System for Engines

Product Introduction

The KGD - WQ - 501 Engine Emission Testing System is an integrated system device specifically designed for measuring conventional gas components such as THC, CH4, NOx, CO2, CO, and O2 in full - flow dilution or raw exhaust emission tests in laboratories. It includes functional modules such as a sampling unit, a pre - treatment unit, and various gas analyzers, and is applicable to research, development, and certification tests of all types of engines and fuels.

Operating Environment-Friendly KGD WQ 501 Engine Emission Testing System for Accurate Results

Product Features

  • Adopts self - developed patented gas sensing technologies such as NDIR, NDUV, CLD, and HFID, with one - stop service throughout the life cycle.
  • The gas analyzer has a wide measurement range, suitable for all laboratory emission test application scenarios including ultra - low emission levels.
  • The gas analyzer has high accuracy and fast response, enabling high - precision continuous online measurement of diluted exhaust and raw exhaust.
  • Can be equipped with a multi - channel multifunctional sampling unit to flexibly respond to multi - point sampling measurement of exhaust pipes and EGR rate measurement.

Technical Parameters

Gas Component THC CH4 NOx CO CO2 O2
Measurement Principle HFID NMC - FID NDUV/CLD NDIR NDIR MPD
Minimum Range 0 - 10 ppmC 0 - 10 ppmC 0 - 10 ppm 0 - 50 ppm 0 - 0.5% 0 - 1%
Maximum Range 0 - 30000 ppmC 0 - 3000 ppmC 0 - 10000 ppm 0 - 10% 0 - 20% 0 - 25%
Response Time T10 - 90 < 2.5s
Accuracy ≤ ±2.0%WR or ≤ ±0.3%FS
Linearity Determination coefficient: ≥ 0.998; Standard error: ≤ 1%FS; Slope: 0.99 - 1.01; Intercept coefficient: ≤ 0.5%FS
Repeatability ≤ ±0.5%FS
Drift ≤ ±1%FS/8h
Operating Environment Ambient temperature: 5 - 40°C; Ambient humidity: ≤ 80%RH
